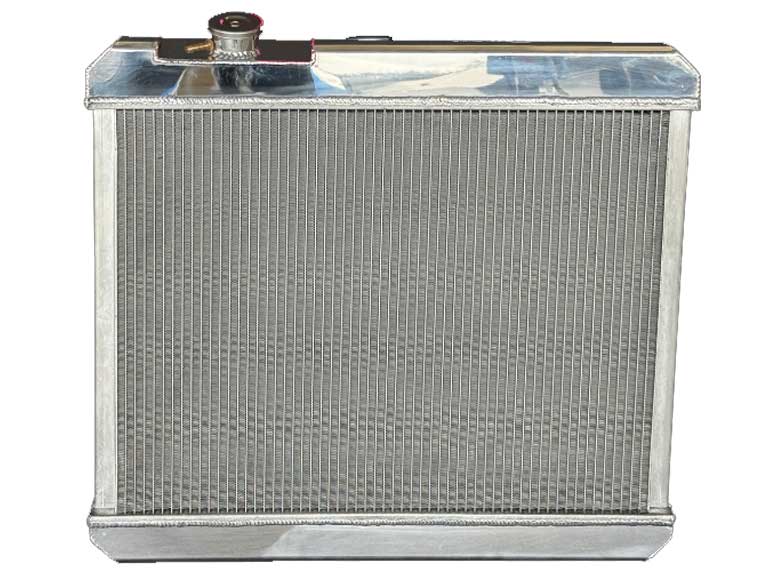

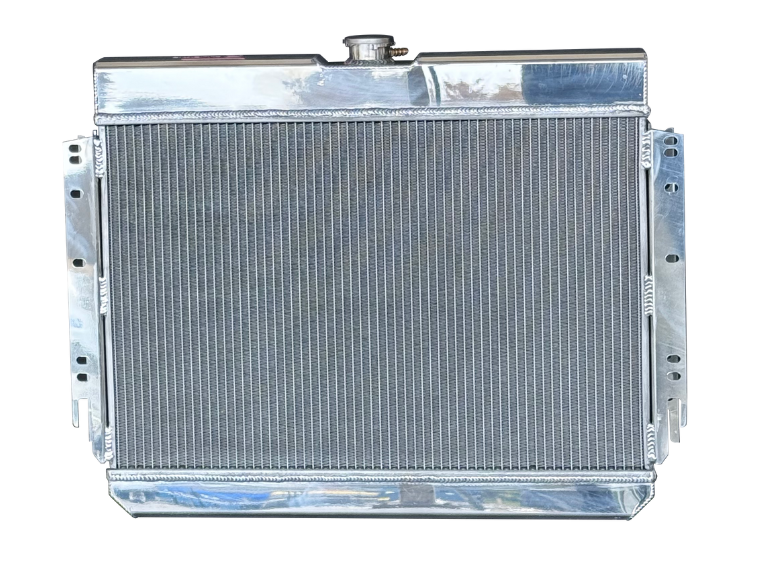

1961-1966 GM C10 Chevy Automatic Polished Aluminum Radiator 25×24

Name: 1961-1966 GM C10 Chevy Automatic Polished Aluminum Radiator 25x24
SKU: 2857
Availability: InStock

Price range: $438 through $483

Total: $438

Radiator Type

Clear

Guaranteed Safe And Secure Checkout

SKU: N/A Category: Aluminum Automobile Radiators

SKU	RGM.3R2524.A	RGM.4R2623.A
Overall Dimensions	25″ L x 23.3″ H x 2.5″ D	25″ L x 23.3″ H x 3.125″ D
Length	25″	25″
Height	23.3″	23.3″
Depth	2.5″	3.125″
Weight	16lbs	16lbs
Core Length	22.75″	22.75″
Core Height	17.4″	17.4″
Core Depth	2″	2.75″
Core Dimensions	22.75″ L x 17.4″ H x 2″ D	22.75″ L x 17.4″ H x 2.75″ D
Tube Size	0.63	0.63
Outlet Diameter	1.75	1.75
Inlet Diameter	1.5	1.5
Outlet Side	Passenger	Passenger
Inlet Side	Driver	Driver
Finish	Mirror Polished	Mirror Polished
Radiator Type	1961-1966 GM Chevy 3 Row Automatic Polished Aluminum Radiator 25×24	1961-1966 GM Chevy 4 Row Automatic Polished Aluminum Radiator 25×24
Material	Aluminum	Aluminum
Fins Per Inch	>16	>16
Passes	Single	Single
Rows	3	4
Trans Cooler	Yes	Yes
Radiator Cap	Billet	Billet
Compatible Years	1961-1966	1961-1966
Make	GM	GM
